This product has been discontinued and removed from our shelves.

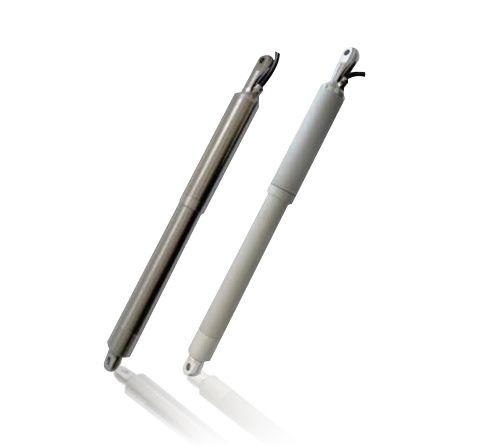

Electric Linear Actuator, YXN024BP

YXN024BP

  • The electric linear actuator, designed specifically for sun shading systems, combines elegance, style, and powerful functionality in a compact form. With a maximum outer diameter of just 38mm, its sleek structure integrates seamlessly into limited spaces.
  • The actuator can handle a maximum load of 2500N and offers customizable stroke and force options, providing versatile solutions for sun shading systems. Its high dust and water resistance levels, IP67M and IP69K, along with an aluminum oxide and 316 stainless steel outer tube, ensure adaptability to various climates and resilience against harsh weather conditions.
  • The actuator is easy to install, maintenance-free, and boasts stable performance with a low failure rate, backed by a 5-year warranty. Operating quietly at less than 56dB, ensuring a tranquil operation of sun shading systems, creating a comfortable atmosphere.

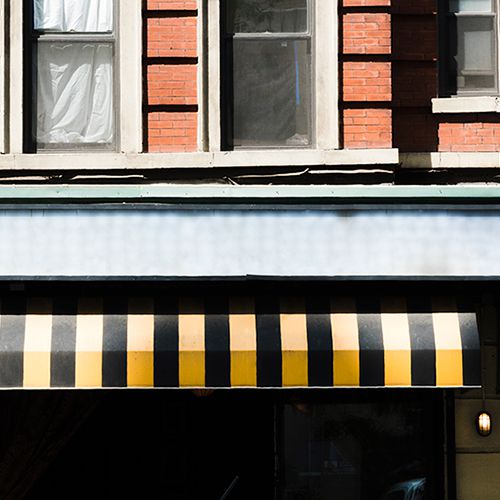

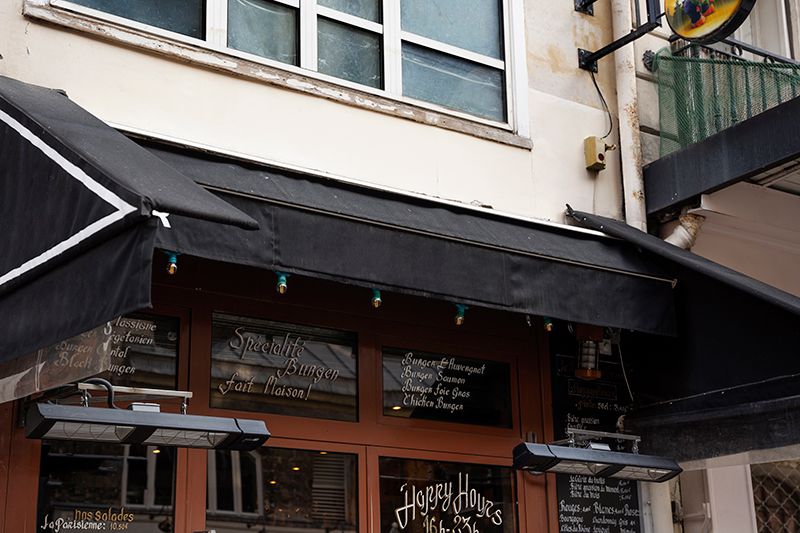

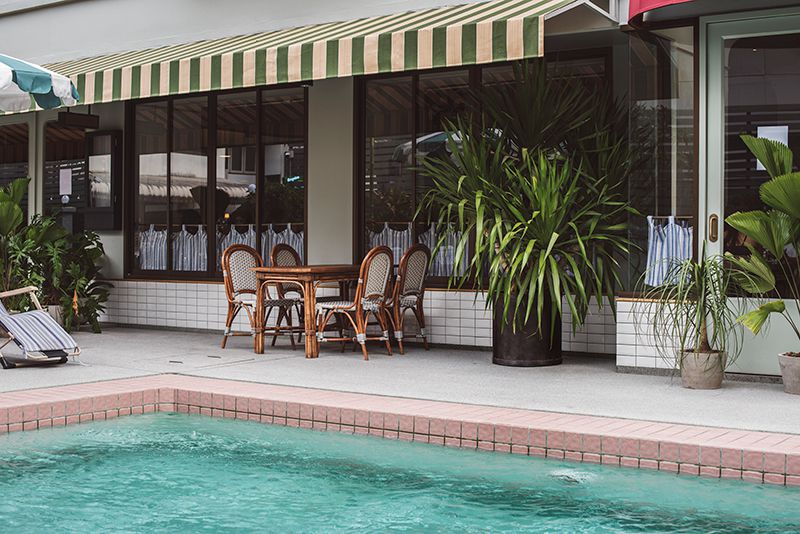

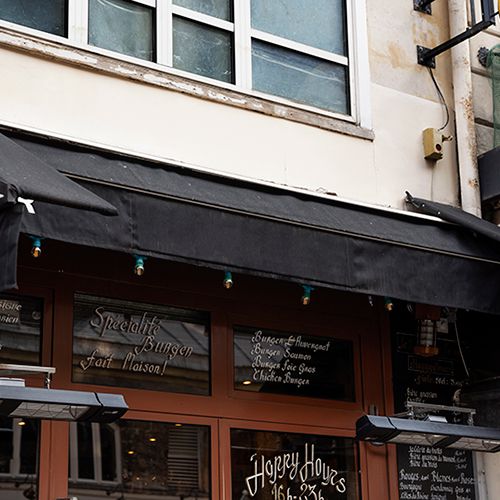

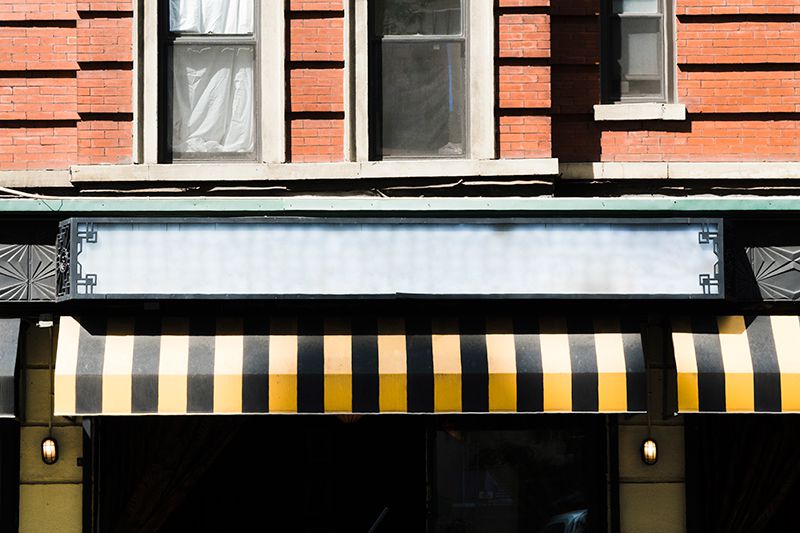

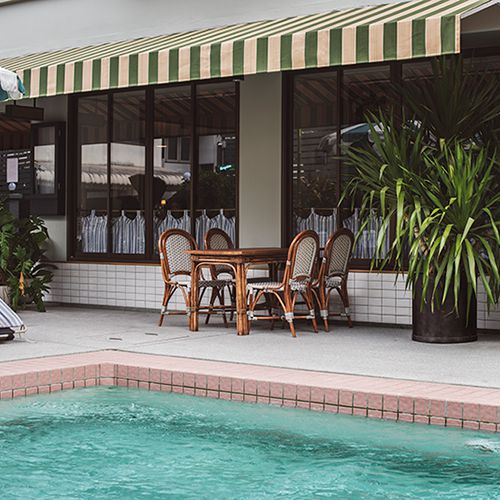

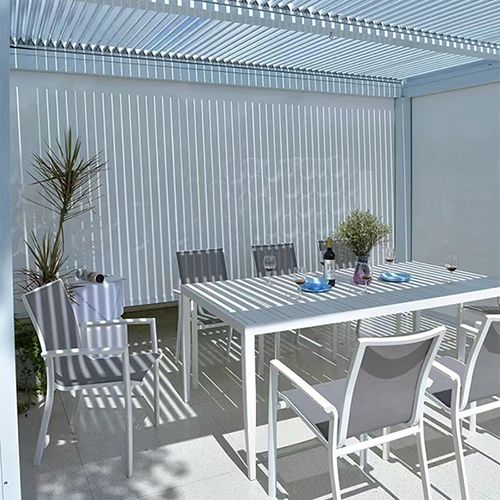

Applications
  • Electric Linear Actuator, YXN024BP
  • Electric Linear Actuator, YXN024BP
  • Electric Linear Actuator, YXN024BP
  • Electric Linear Actuator, YXN024BP
Specifications
Voltage 12VDC 24VDC
No-load current ≤1.2A ≤0.6A
Load current ≤3.8A ≤1.8A
Maximum power 50W
Stroke 20-400mm (special stroke length can be customized)
Limit switch Built-in
Installation length Stroke+300mm
Noise level ≤56dbB
IP level IP67M/IP69K
Linear clearance 0.5-1mm
Optional configuration Built-in current protection Built-in Hall sensor feedback Outer tube (aluminum) Outer tube (stainless steel)
Duty cycle (S2) 10%, work 2 minutes, rest 18 minutes
Service life ≥10000 cycles
Operating temperature -20℃~60℃
Storage temperature -40℃~70℃
Ball screw material #45 Steel
Expansion tube material SUS316
Standard color Metallic color
Standard wire length 1.5m (Special length can be customized)
Certification CE
Load and Speed
Thrust (N) Tension (N) Self-locking force(N) Rated load speed (mm/s) No-load speed (mm/s)
600 600 600 10.5 13
800 800 800 7 8.5
1200 1200 1200 4.5 5
1500 1500 1500 4 5
2000 2000 2000 3.5 5
2500 2500 2500 2.3 3.3

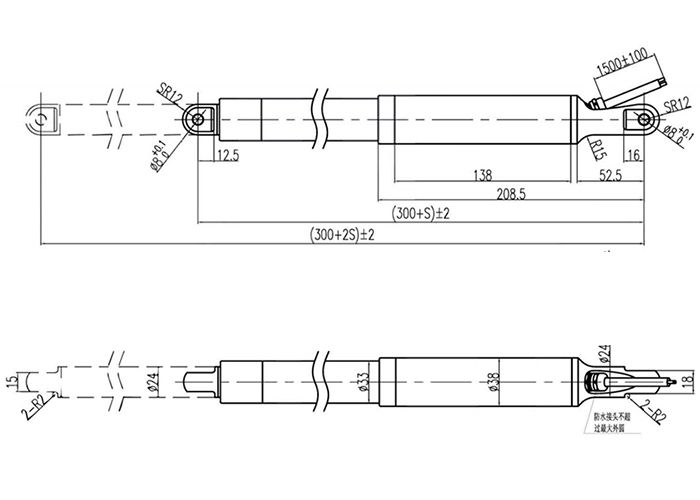

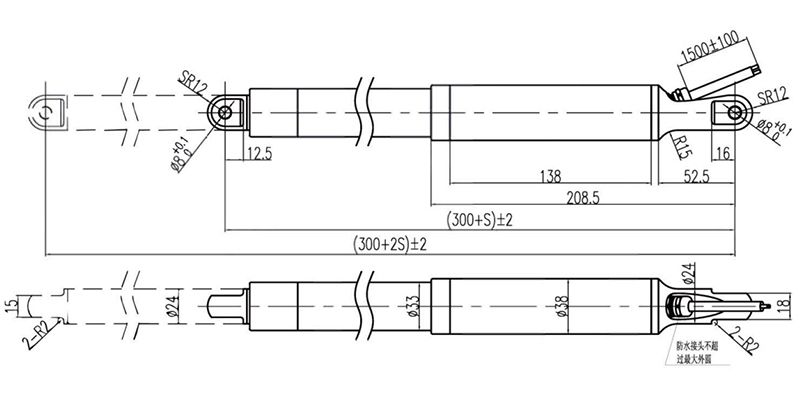

Dimensions
Dimensions
What We Can Customize
  • Wire length
    Wire length
  • Stroke length
    Stroke length
  • Installation dimension
    Installation dimension
  • Front and rear mounting joint
    Front and rear mounting joint
  • Color and surface treatment
    Color and surface treatment

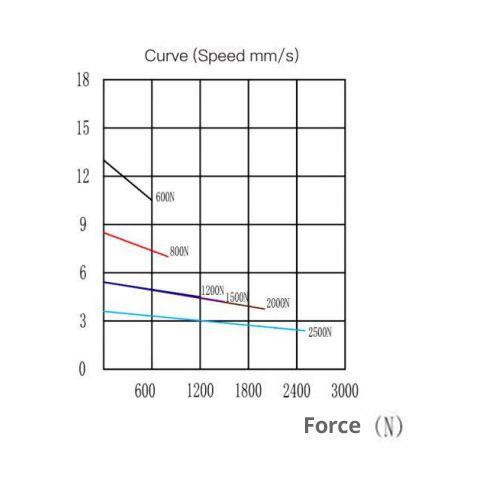

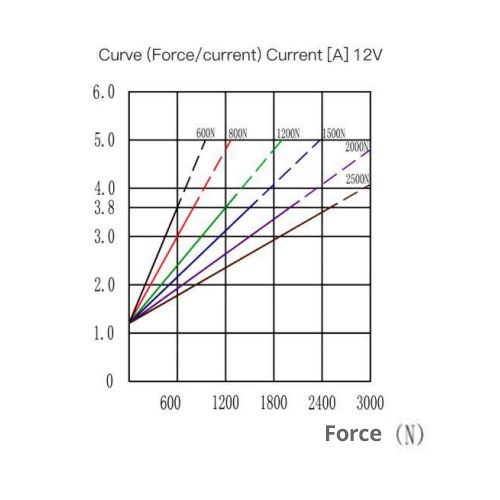

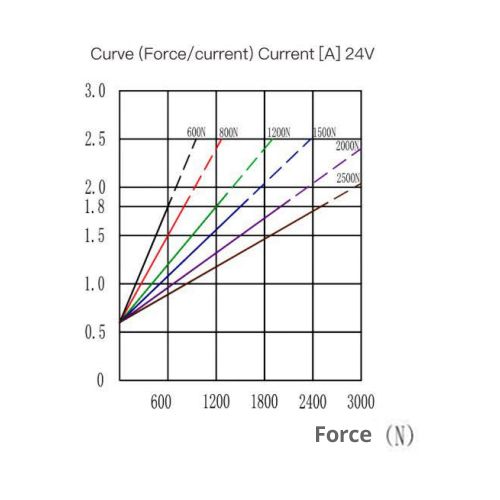

Performance Curves
  • Performance Curves
  • Performance Curves
  • Performance Curves
